SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

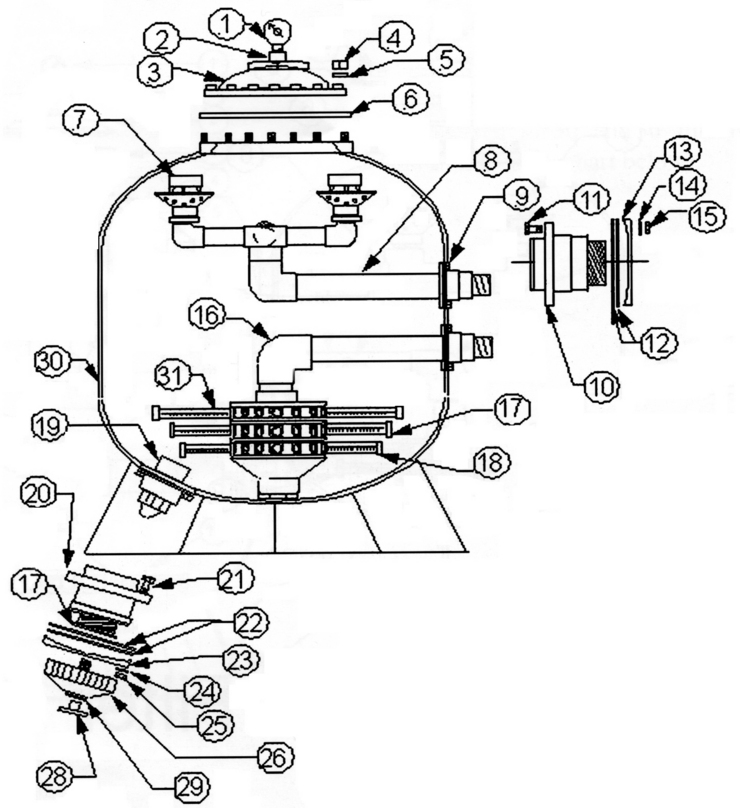

Here is the schematic view you requested:

Category: Sand Filter Parts
Manufacturer name: Waterco / Baker Hydro
Model Name: HRV 48 Filter Parts

Waterco / Baker Hydro HRV-48-Filter-Parts replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

2

 15L0194 Air Relief Valve Yes 1 Day(s) $37.70

3

 15L0153 Lid Yes 1 Day(s) $425.00

4

 15L0156 Lid Nut Yes 1 Day(s) $3.40

5

 15L0155 Lid Washer Yes 1 Day(s) $2.43

6

 15L0154 Lid Gasket Yes 1 Day(s) $48.27

7

 15L0193 Hydrodome Assy Yes 1 Day(s) $36.63

8

 15L0181 Distributor Assy Yes 1 Day(s) $401.23

9

 15L0142 3"" Bulk Head Assy Yes 1 Day(s) $158.16

10

 15L0145 3"" Bulk Head Body Yes 1 Day(s) $130.99

11

 15L0146 3"" Bulk Head Screw Yes 1 Day(s) $2.43

12

 15L0143 3"" Bulk Head Gasket Yes 1 Day(s) $11.40

13

 15L0149 3"" Bulk Head Face Ring Yes 1 Day(s) $9.22

14

 15L0147 3"" Bulk Head Washer Yes 1 Day(s) $2.67

15

 15L0148 3"" Bulk Head Nut Yes 1 Day(s) $2.18

16

 15L0180 Collector Assy Yes 1 Day(s) $442.47

17

 15L0182 14"" Lateral Yes 1 Day(s) $21.35

18

 15B0124 8 1/2"" Lateral Yes 1 Day(s) $22.38

19

 15L0152 Sand Port Assy Yes 1 Day(s) $127.84

20

 15L0195 Sand Port Body Assy Yes 1 Day(s) $105.28

21

 15L0162 Sand Port Screw Yes 1 Day(s) $2.18

22

 15L0161 Sand Port Gasket Yes 1 Day(s) $11.16

23

 15L0164 Sand Port Face Ring Yes 1 Day(s) $8.98

24

 15L0165 Sand Port Washer Yes 1 Day(s) $2.18

25

 15L0166 Sand Port Nut Yes 1 Day(s) $2.18

26

 15L0169 Drain Cap Yes 1 Day(s) $19.41

27

 15L0168 Drain Cap Seal Yes 1 Day(s) $3.64

28

 15L0171 Drain Cap Plub Yes 1 Day(s) $4.37

29

 15L0170 Plug Seal Yes 1 Day(s) $2.18

30

 15L0197 48"" Tank w/Base No N/A N/A N/A

31

 15L0188 17"" Lateral Yes 1 Day(s) $21.83
