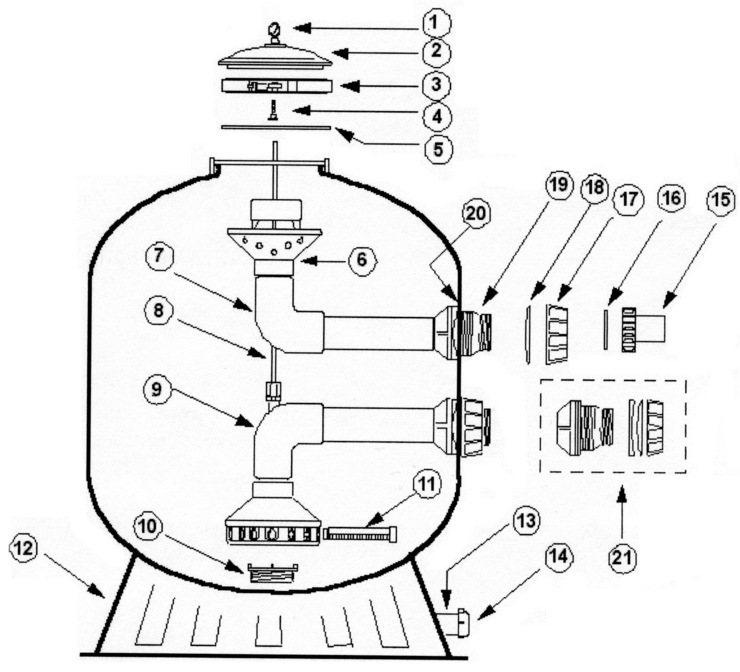

Here is the schematic view you requested:

Manufacturer name: Waterco / Baker Hydro

Model Name: HRV High Pressure



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
6	15B0043	Distributor Hydro Dome	Yes	1 Day(s)	$46.29
7	15B0024	Distributor Assembly HRV 30 & Baker II	Yes	1 Day(s)	$60.93
7	15B0226	Distributor Assembly HRV 36	Yes	1 Day(s)	$68.57
8	15B0102	Vent Tube HRV 30	Yes	1 Day(s)	$29.23
8	15B0232	Vent Tube HRV 36/HRC 300	Yes	1 Day(s)	$28.30
9	15B0227	Collector Assembly HRV 36	Yes	1 Day(s)	$121.23
9	15B0170	Collector Assembly HRV 30	Yes	1 Day(s)	$119.14
10	15B0319	Winterdrain Screen	Yes	1 Day(s)	$13.18
11	15B0124	Lateral 8.5"" Threaded HRV 30 & 36	Yes	1 Day(s)	$22.38
12	15Q0314	Base 36""	Yes	1 Day(s)	$224.48
13	16B0308	Winterdrain Assembly 36""	Yes	1 Day(s)	$58.70
