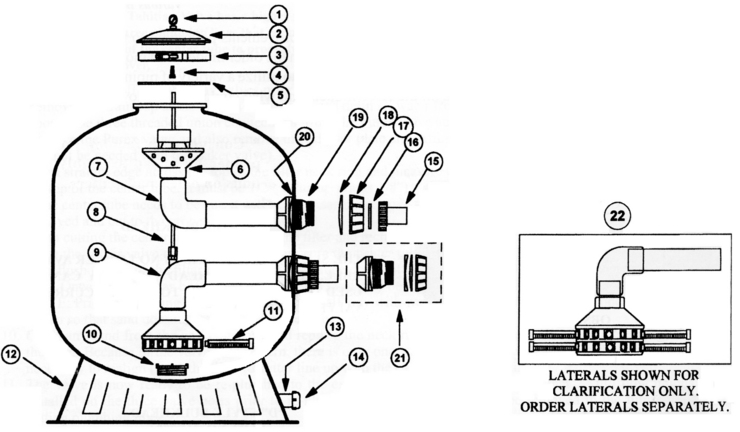

Here is the schematic view you requested:

Category: Sand Filter Parts

Manufacturer name: Waterco / Baker Hydro

Model Name: HRV Series Parts (Current)



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
6	15B0043	Hydro Dome Distributor	Yes	1 Day(s)	$46.29
7A	15B0177	Dist. Pipe Assy HRV 18""	No	N/A	N/A	N/A
7B	15B0020	Dist. Pipe Assy HRV 24""	Yes	1 Day(s)	$55.92
7C	15B0024	Dist. Pipe Assy HRV 30""	Yes	1 Day(s)	$60.93
7D	15B0226	Dist. Pipe Assy HRV 36""	Yes	1 Day(s)	$68.57
8D	15B0232	Vent Tube Assy HRV 36""	Yes	1 Day(s)	$28.30
8C	15B0102	Vent Tube Assy HRV 30""	Yes	1 Day(s)	$29.23
8B	15B0101	Vent Tube Assy HRV 24""	Yes	1 Day(s)	$29.05
8A	15B0183	Vent Tube Assy HRV 18""	Yes	1 Day(s)	$18.19
9D	15B0227	Collector Assy HRV 36""	Yes	1 Day(s)	$121.23
9C	15B0170	Collector Assy HRV 30""	Yes	1 Day(s)	$119.14
9B	15B0169	Collector Assy HRV 24""	Yes	1 Day(s)	$119.07
9A	15B0178	Collector Assy HRV 18""	Yes	1 Day(s)	$42.45
10	15B0319	Winterdrain Screen	Yes	1 Day(s)	$13.18
11A	15B0124	8-1/2"" Th'd. Lateral HRV 30"" & 36""	Yes	1 Day(s)	$22.38
11B	15B0125	5-1/2"" Th'd. Lateral HRV 18"" & 24""	Yes	1 Day(s)	$22.75
12D	15Q0314	Base HRV 36""	Yes	1 Day(s)	$224.48
12A	15Q0315	Base HRV 18""	Yes	1 Day(s)	$102.86
13A	16B0309	Winterdrain Assy HRV 18""	Yes	1 Day(s)	$58.70
13D	16B0308	Winterdrain Assy HRV 36""	Yes	1 Day(s)	$58.70
22A	15D0170	Dual Collector Assy HRV 30"" Less Laterals	Yes	1 Day(s)	$196.00
22B	15D0227	Dual Collector Assy HRV 36"" Less Laterals	Yes	1 Day(s)	$198.92
