SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

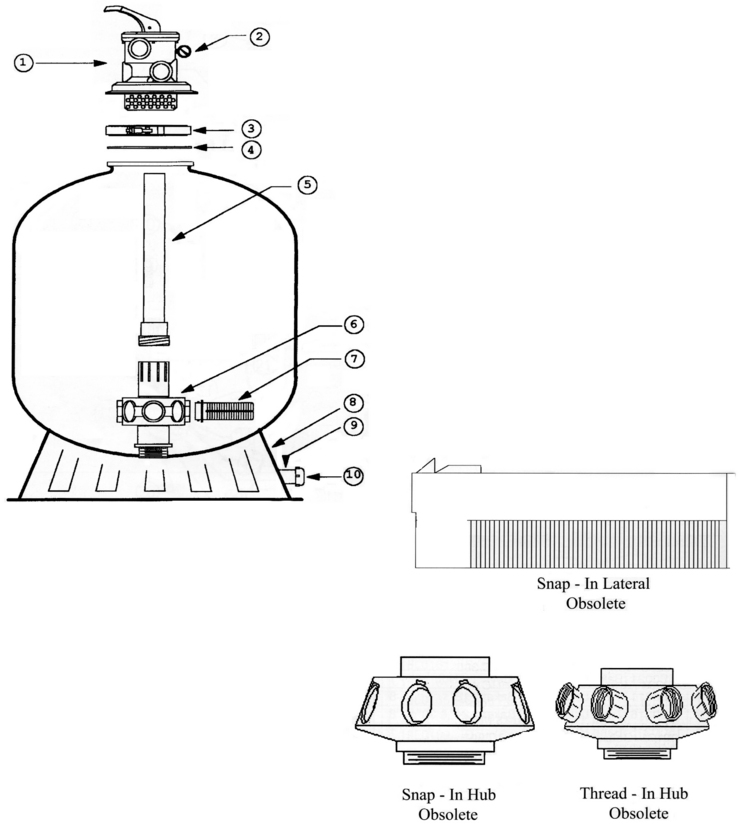

Here is the schematic view you requested:

Category: Sand Filter Parts
Manufacturer name: Waterco / Baker Hydro
Model Name: Newport Series Parts

Waterco / Baker Hydro Newport-Series-Parts replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

1

 30B0056 1-1/2"" Top Mount Multiport Valve Yes 1 Day(s) $170.58

3

 00B8030 V- Band Clamp No N/A N/A N/A

5A

 15N0330 Center Tube Newport 21"" Yes 1 Day(s) $59.67

5B

 15N0331 Center Tube Newport 25"" Yes 1 Day(s) $62.34

6

 15B0021 Baker II Twist Lock Collector Hub Yes 1 Day(s) $41.82

7A

 15B0011 Twist Lock Lateral Baker II 18"" Yes 1 Day(s) $12.57

7B

 15B0016 Twist Lock Lateral Baker II 24"" & 30"" Yes 1 Day(s) $14.86

8A

 15Q0315 Base HRV 21"" Yes 1 Day(s) $102.86

9A

 16B0309 Winterdrain Assy HRV 18"" Yes 1 Day(s) $58.70
