SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

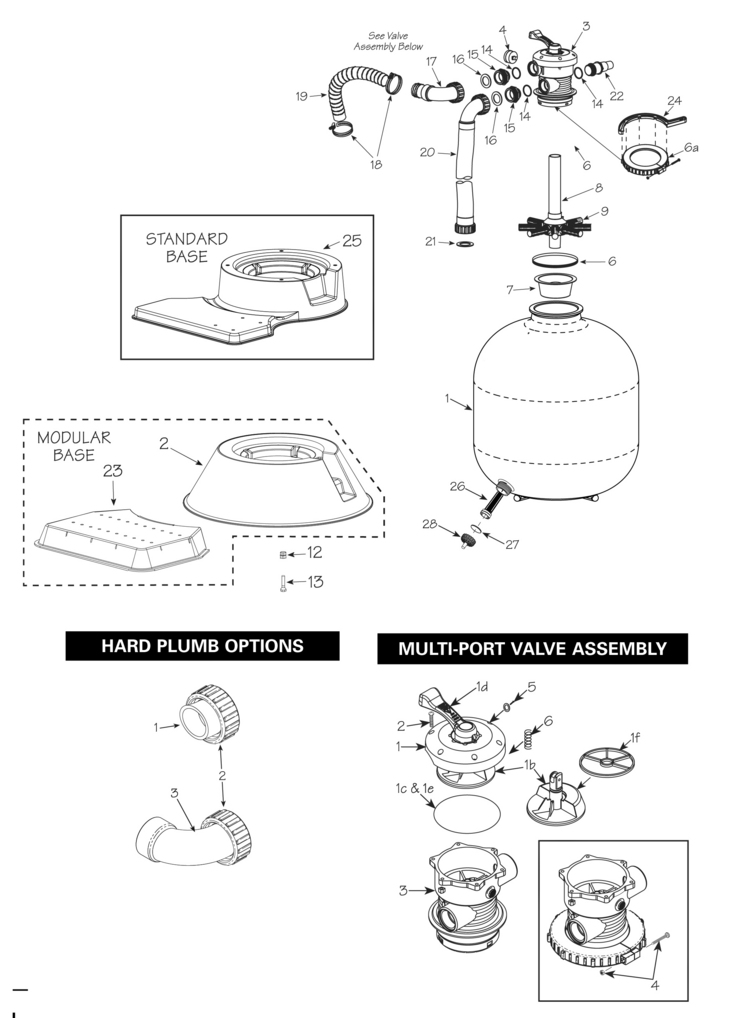

Here is the schematic view you requested:

Category: Sand Filter Parts

Manufacturer name: Waterway

Model Name: Carefree Sand Filter



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1	505-0271	16"" Sand Filter Body with Threaded Sleeve	Yes	1 Day(s)	$216.57
1d	602-1931	Lid Handle Only	Yes	1 Day(s)	$7.60
1c	805-0254	Lid O-Ring	Yes	1 Day(s)	$5.43
1b	600-9500	Diverter Valve Assembly w/ Gasket	Yes	1 Day(s)	$29.08
1e	711-1910B	Diverter Gasket (Spider) (NOTE: We recommend purchasing gasket glued into diverter by the factory.)	Yes	1 Day(s)	$13.02
1	400-4061	1 1/2"" Socket Pump Union	Yes	1 Day(s)	$3.46
1	600-9600	Multi-Port Lid Assembly	Yes	1 Day(s)	$76.42
1	505-0281	19"" Sand Filter Body with Threaded Sleeve	Yes	1 Day(s)	$261.71
1	505-0291	22"" Sand Filter Body with Threaded Sleeve	Yes	1 Day(s)	$303.91
1	505-0301	26"" Sand Filter Body with Threaded Sleeve	Yes	1 Day(s)	$406.69
2	672-7211	Filter Base Modular	No	N/A	N/A	N/A
2	819-0010	Lid Screw	Yes	1 Day(s)	$1.38
2	415-4001	1 1/2"" Union Nut	Yes	1 Day(s)	$1.65
3	VS0-03	Multi-Port Valve Assembly with Split-Nut	Yes	1 Day(s)	$100.34
3	500-1901	1 1/2"" Socket Return Sweep Assembly	Yes	1 Day(s)	$19.98
3	820-0013	Hex Nut	Yes	1 Day(s)	$1.38
4	800-0100	Split-Nut Bolt & Nut	Yes	1 Day(s)	$2.76
5	805-0435	Multi-Port O-Ring (Use with Split-Nut Style)	Yes	1 Day(s)	$5.27
5	800-0150	O-Ring Kit with Pin & Washer	Yes	1 Day(s)	$9.21
6a	505-3010	Split-Nut	Yes	1 Day(s)	$15.17
6	505-3000	Threaded Sleeve Assembly	Yes	1 Day(s)	$13.49
6	827-0002	Spring	Yes	1 Day(s)	$5.12
7	502-2111	Sand Fill Guide	No	N/A	N/A	N/A
8	505-2140	Lateral & Manifold Assembly for 16"" Filter	Yes	1 Day(s)	$55.93
8	505-2150	Lateral & Manifold Assembly for 19"" Filter	Yes	1 Day(s)	$55.93
8	505-2180	Lateral & Manifold Assembly for 26"" Filter	Yes	1 Day(s)	$55.93
8	505-2160	Lateral & Manifold Assembly for 22"" Filter	Yes	1 Day(s)	$55.93
9	505-1930	Lateral - Thread Style	Yes	1 Day(s)	$4.48
10	505-2020	Drain Assembly	Yes	1 Day(s)	$10.57
11	505-2030	Drain Cap Assembly	Yes	1 Day(s)	$4.85
12	820-0017	Washer 3/8"" Flat	Yes	1 Day(s)	$0.55
13	819-0020	Bolt 16"" Sand Filter 3/8"" - 16 x 1 1/4"" Hex	Yes	1 Day(s)	$2.40
13	819-0019	Bolt 19"" Sand Filter 3/8"" - 16 x 1 1/2"" Hex	Yes	1 Day(s)	$2.05
13	819-0016	Bolt 22""- 26"" Sand Filter 3/8"" - 16 x 2"" Hex	Yes	1 Day(s)	$1.75
14	805-0224	1 1/2"" Buttress x 1 1/2"" MPT Fitting O-Ring	Yes	1 Day(s)	$0.40
15	417-4161	1 1/2"" Buttress x 1 1/2"" MPT	Yes	1 Day(s)	$3.48
16	711-4000	1 1/2"" Gasket	Yes	1 Day(s)	$0.99
17	550-1841	Return Sweep Assembly	Yes	1 Day(s)	$21.71
19	872-9002	Corrugated Hose - Black	Yes	1 Day(s)	$13.02
20	550-1831	26"" Sand Filter to Pump Union Hose Assembly	Yes	1 Day(s)	$52.12
20	550-1821	22"" Sand Filter to Pump Union Hose Assembly	Yes	1 Day(s)	$45.61
20	550-1811	19"" Sand Filter to Pump Union Hose Assembly	Yes	1 Day(s)	$39.09
20	550-1801	16"" Sand Filter to Pump Union Hose Assembly	Yes	1 Day(s)	$32.59
21	711-4010	2"" Gasket	Yes	1 Day(s)	$0.48
22	425-1928	Waste Adapter Fitting	Yes	1 Day(s)	$10.45
23	672-7201	Pump Base Modular	Yes	1 Day(s)	$26.06
24	505-1970	Collar Wrench for Threaded Style Split-Nut	Yes	1 Day(s)	$11.60
25	672-7241	Standard System Base	Yes	1 Day(s)	$61.42
26	602-5310	Self-Threading Drain Screen	Yes	1 Day(s)	$3.53
27	805-0224	O-Ring	Yes	1 Day(s)	$0.40
28	602-5300	Drain Screen Cap	No	N/A	N/A	N/A
