Here is the schematic view you requested:

Category: DE Filter Parts
Manufacturer name: Waterway
Model Name: ClearWater D.E. Filter

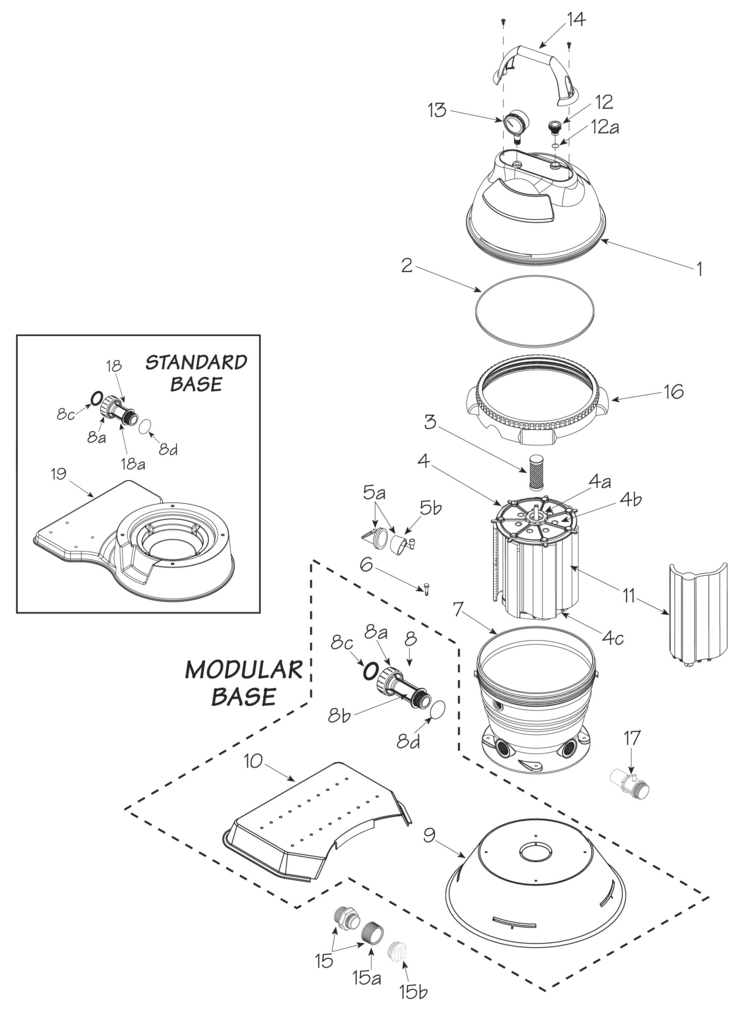

Waterway ClearWater-DE-Filter replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

1

511-7201 Lid Assembly - Small (44 GPM) Yes 1 Day(s) $101.54

1

511-7301 Lid Assembly - Medium (67 GPM) Yes 1 Day(s) $118.34

1

511-7311 Lid Assembly - Large (90 GPM) Yes 1 Day(s) $134.56

2

805-0383 O-Ring Yes 1 Day(s) $9.05

3

500-7310 Internal Filter Screen Assembly Yes 1 Day(s) $10.87

4C

550-7030 Bottom Base Assembly 90 GPM No N/A N/A N/A

4C

550-7020 Bottom Base Assembly 67 GPM Yes 1 Day(s) $79.04

4c

550-7010 Bottom Base Assembly 44 GPM Yes 1 Day(s) $71.60

4b

519-7269 Top Plate DE Yes 1 Day(s) $33.56

4a

718-7219 Tie Nut Yes 1 Day(s) $7.47

4

500-0050 Internal Assembly 44 GPM Yes 1 Day(s) $223.72

4

500-0075 Internal Assembly 67 GPM Yes 1 Day(s) $298.29

4

500-0100 Internal Assembly 90 GPM No N/A $10.90

5a

500-7100 Air Bleeder Assembly Yes 1 Day(s) $13.59

5b

500-7301 1 1/2"" Check Valve Assembly (2"" does not use this part.) Yes 1 Day(s) $16.88

6

429-7300 Pin and Anchor Assembly (4 ea.) Yes 1 Day(s) $5.43

7

500-7201 Filter Body w/ Check Valve (1 1/2"" Body) Yes 1 Day(s) $205.06

7

515-7301 Filter Body w/o Check Valve (2"" Body) Yes 1 Day(s) $173.46

8a

415-5001 2"" Union Nut Yes 1 Day(s) $2.51

8b

419-7211 Coupling Modular Yes 1 Day(s) $10.45

8c

711-4010 2"" Gasket Yes 1 Day(s) $0.48

8

419-7220 Coupling Assembly Modular Base No N/A $13.20

8d

805-0224 Coupling O-Ring Yes 1 Day(s) $0.40

9

672-7211 Filter Base Modular No N/A N/A N/A

10

672-7221 Pump Base (HI-FLO) Modular Yes 1 Day(s) $26.06

11

550-7210 Individual Grid 44 GPM Yes 1 Day(s) $26.11

11

550-7220 Individual Grid 67 GPM Yes 1 Day(s) $33.56

11

550-7230 Individual Grid 90 GPM Yes 1 Day(s) $41.01

12

715-6011 Plug Air Bleed Yes 1 Day(s) $5.75

12a

805-0117SD O-Ring Yes 1 Day(s) $3.24

14

662-7221 Handle Assembly Yes 1 Day(s) $18.46

15

500-5300 C/D Drain Assembly (1 1/2"" Body) Yes 1 Day(s) $7.47

15a

505-2030 Drain Cap Assembly (1 1/2"" Body) Yes 1 Day(s) $4.85

16

511-7221 Lock Nut Assembly Yes 1 Day(s) $55.93

17

425-1801 1 1/2"" MPT x 1 1/2"" Hose Adapter Yes 1 Day(s) $6.53

18

419-7251 Coupling Assembly Standard Base Yes 1 Day(s) $13.20

19

672-7241 Standard System Base Yes 1 Day(s) $61.42
