SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

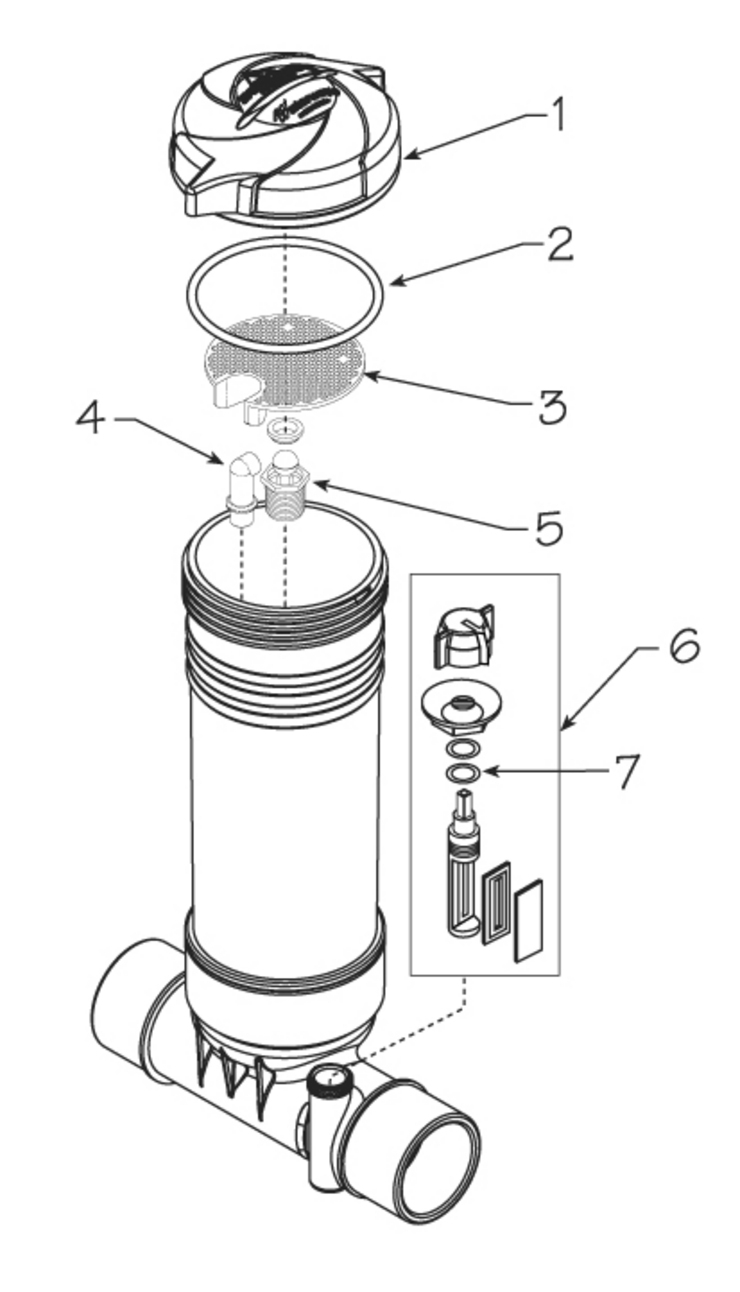

Here is the schematic view you requested:

Category: Chemical Feeders
Manufacturer name: Waterway
Model Name: In-Line Chlorinator - New Style

Waterway InLine-Chlorinator-New-Style replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

1

 519-1167 Lid Yes 1 Day(s) $12.92

1

 519-1167 Lid Yes 1 Day(s) $12.92

2

 805-0348V Lid O-Ring Yes 1 Day(s) $7.60

2

 805-0348V Lid O-Ring Yes 1 Day(s) $7.60

3

 319-0030 Filter Screen Yes 1 Day(s) $4.01

4

 411-1170 90° Elbow - 1/4" pipe Yes 1 Day(s) $2.85

4

 411-1170 90° Elbow - 1/4" pipe Yes 1 Day(s) $2.85

5

 600-1180 Check Valve Assembly Yes 1 Day(s) $7.38

5

 600-1180 Check Valve Assembly Yes 1 Day(s) $7.38

6

 600-1190 Stem Assembly w/ O-Ring Yes 1 Day(s) $16.88

7

 805-0113V O-Ring - Viton Yes 1 Day(s) $0.87
