SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

Here is the schematic view you requested:

Category: Main Drains and Grates
Manufacturer name: Waterway
Model Name: Main Drain

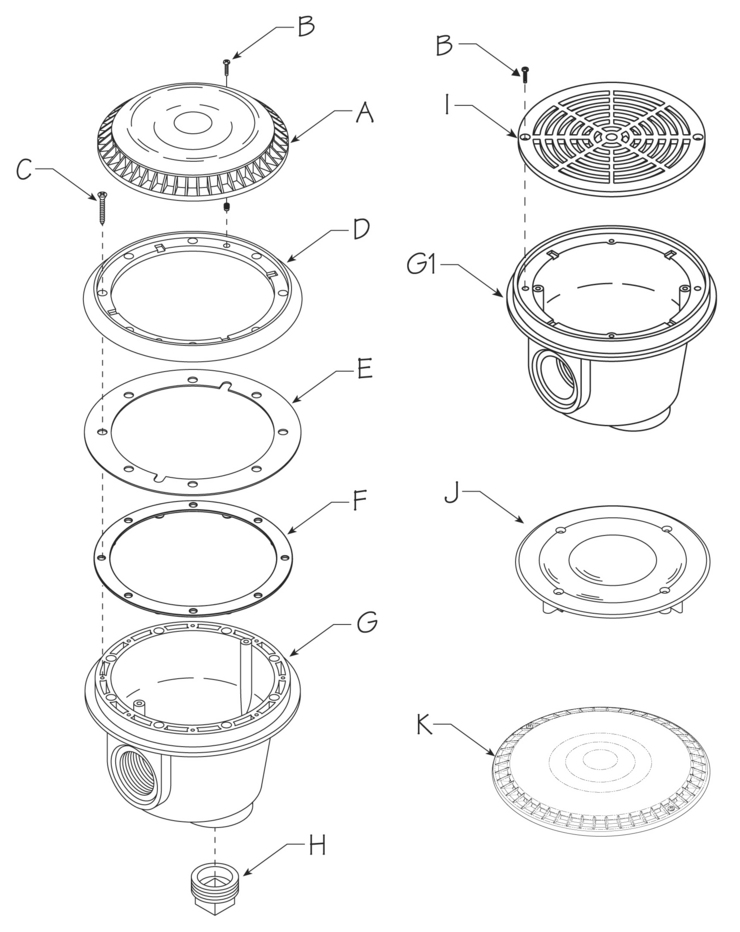

Waterway Main-Drain replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

-

 819-6430 Cover Screws For Open Anti-Vortex Cover Yes 1 Day(s) $0.97

G1

 672-2500 8"" Concrete Cover - 2"" FPT Yes 1 Day(s) $27.41

G1

 672-2410 8"" Concrete Cover - 1 1/2"" S Yes 1 Day(s) $27.41

G1

 672-2510 8"" Concrete Cover - 2"" S Yes 1 Day(s) $27.41

H

 715-1230 1 1/2"" NPT Plug Yes 1 Day(s) $1.41

H

 715-9910 2"" NPT Plug Yes 1 Day(s) $1.77

I

 642-2330 Flat Grate Only - White (Less Screws) Yes 1 Day(s) N/A N/A

I

 642-2332 Flat Grate Only - Bone (Less Screws) Yes 1 Day(s) N/A N/A

J

 642-2100 Open Anti-Vortex Cover white Only (Less Screws) Yes 1 Day(s) $11.42

K

 642-3100 10"" Anti-Vortex Cover - White Yes 1 Day(s) $18.43

K

 642-3101 10"" Anti-Vortex Cover - Black Yes 1 Day(s) $18.43

K

 642-3107 10"" Anti-Vortex Cover - Gray Yes 1 Day(s) $18.43

K

 642-3109DKG 10"" Anti-Vortex Cover - Dark Gray Yes 1 Day(s) $18.43

G

 672-2520 Main Drain Body Vinyl Liner - 2"" S Yes 1 Day(s) $27.41

G

 672-2430 Main Drain Body Vinyl Liner - 1 1/2"" S Yes 1 Day(s) $27.41

A

 642-2150 8"" Anti-Vortex Cover - White (Less Screws) Yes 1 Day(s) $10.19

A

 642-2151 8"" Anti-Vortex Cover - Black (Less Screws) Yes 1 Day(s) $10.19

A

 642-2152 8"" Anti-Vortex Cover - Bone (Less Screws) Yes 1 Day(s) $10.19

A

 642-2157 8"" Anti-Vortex Cover - Gray (Less Screws) Yes 1 Day(s) $10.19

A

 642-2159DKG 8"" Anti-Vortex Cover - Dark Gray (Less Screws) No N/A N/A N/A

A

 642-2159BEI 8"" Anti-Vortex Cover - Beige (Tan) (Less Screws) No N/A N/A N/A

A

 642-2159DKB 8"" Anti-Vortex Cover - Dark Blue (Less Screws) No N/A N/A N/A

B

 819-1110 Cover Screws (Except for open Anti-Vortex Cover) Yes 1 Day(s) $0.99

C

 819-6940 Mounting Screw Yes 1 Day(s) $1.31

D

 642-2090 Vinyl Liner Main Drain Mounting Plate - white Yes 1 Day(s) $12.54

D

 642-2091 Vinyl Liner Main Drain Mounting Plate - Black Yes 1 Day(s) $12.54

D

 642-2097 Vinyl Liner Main Drain Mounting Plate - Gray Yes 1 Day(s) $12.54

E

 806-3000 Vinyl Liner Fiber Gasket Yes 1 Day(s) N/A N/A

F

 711-2600 Vinyl Liner Body Gasket (Stay-In-Place) Yes 1 Day(s) $6.72

G

 672-2420 Main Drain Body Vinyl Liner - 1 1/2"" FPT Yes 1 Day(s) $27.41

G

 672-2530 Main Drain Body Vinyl Liner - 2"" FPT Yes 1 Day(s) $27.41

K

 642-3109BEI 10"" Anti-Vortex Cover - Beige (Tan) Yes 1 Day(s) $18.43
