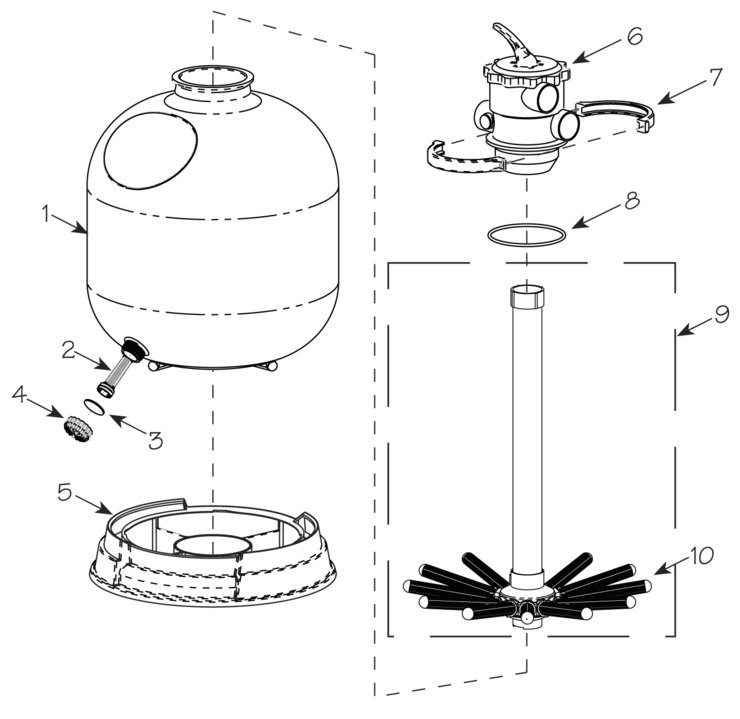

Here is the schematic view you requested:

Category: Sand Filter Parts

Manufacturer name: Waterway

Model Name: Smartclean Series Sand Filter



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1	817-0001	Screen Mesh w/ Clamp Assembly	Yes	1 Day(s)	$6.32
1	515-2051T	32"" Smartclean Sand Filter Body	Yes	1 Day(s)	$683.44
1	515-2040T	26"" Smartclean Sand Filter Body	No	N/A	N/A	N/A
2	872-2130E	Bleeder Hose - 3/8"" OD x 1/4"" ID	No	N/A	N/A	N/A
2	602-5310	Self-Threading Drain Screen	Yes	1 Day(s)	$3.53
3	711-5310	Drain Cap Gasket	Yes	1 Day(s)	$2.18
3	715-6011	Air Relief Plug	Yes	1 Day(s)	$5.75
4	805-0117SD	O-Ring - Air Relief Plug	Yes	1 Day(s)	$3.24
4	602-5300	Drain Screen Cap Assembly	No	N/A	N/A	N/A
5	672-5301	Smartclean Filter Body Base	Yes	1 Day(s)	$51.94
5	519-5300	Access Dome Cover	No	N/A	N/A	N/A
6	VS0-06	Side Mount Clamp Style - 2"" FPT	Yes	1 Day(s)	$158.21
6	VS0-05	Side Mount Clamp Style - 1 1/2"" FPT	No	N/A	N/A	N/A
6	VS0-04	Top Mount Clamp Style - 2"" FPT	Yes	1 Day(s)	$122.83
6	VS0-07	Top Mount Clamp Style - 1 1/2"" FPT	No	N/A	N/A	N/A
6	872-0046	Multi-Port Valve Clamp w/ Nuts & Bolts	Yes	1 Day(s)	$14.62
7	872-0042	Multi-Port Valve O-Ring	Yes	1 Day(s)	$5.84
7	872-0046	Multi-Port Valve Clamp w/ Nuts	Yes	1 Day(s)	$14.62
8	519-5310	Sand Guide	Yes	1 Day(s)	$4.64
8	805-0442	Multi-Port Valve O-Ring	Yes	1 Day(s)	$5.84
9	550-5370	Lateral & Manifold Assembly Top - 32""	Yes	1 Day(s)	$71.51
9	550-5360	Lateral & Manifold Assembly Top - 26""	No	N/A	N/A	N/A
9	519-5320	Disbursement Basket Cap	Yes	1 Day(s)	$4.33
10	519-5330	Disbursement Basket	Yes	1 Day(s)	$6.05
10	519-5370	Lateral	Yes	1 Day(s)	$5.75
11	550-5340	Lateral & Manifold Assembly - 26""	Yes	1 Day(s)	$68.58
11	550-5350	Lateral & Manifold Assembly - 32""	No	N/A	N/A	N/A
12	519-5370	Lateral	Yes	1 Day(s)	$5.75
13	411-5340	Twist-Lock Slip Seal Aligning Coupling	Yes	1 Day(s)	$3.64
14	VS0-06	Side Mount Clamp Style - 2"" FPT	Yes	1 Day(s)	$158.21
14	VS0-05	Side Mount Clamp Style - 1 1/2"" FPT	No	N/A	N/A	N/A
14	VS0-04	Top Mount Clamp Style - 2"" FPT	Yes	1 Day(s)	$122.83
14	VS0-07	Top Mount Clamp Style - 1 1/2"" FPT	No	N/A	N/A	N/A
15	550-5360	Water Control Body Assembly	No	N/A	N/A	N/A
17	411-5330	Aligning Slip Seal Coupling	Yes	1 Day(s)	$3.64
18	411-5320	Twist-Lock Slip Seal Aligning 45° Elbow	Yes	1 Day(s)	$4.73
19	515-2041S	26"" Smartclean Sand Filter Body	Yes	1 Day(s)	$498.33
19	515-2051S	32"" Smartclean Sand Filter Body	Yes	1 Day(s)	$694.11
20	602-5310	Self-Threading Drain Screen	Yes	1 Day(s)	$3.53
21	711-5311	Drain Cap Gasket - Smartclean	No	N/A	N/A	N/A
22	602-5301	Drain Screen Cap Assembly	Yes	1 Day(s)	$3.52
23	672-5301	Smartclean Filter Base	Yes	1 Day(s)	$51.94
